Air Compressor - Ultimate Duty
Product Code: DR.12.013101
Specifications
| Compressor Type | TA 3101 |
| Part # | DR.12.013101 |
| Integrated Dryer | Yes |
| Integrated Quick Release | No |
Electrical Data
| Operating Voltage Range | 9 - 16 V DC |
| Max. AMP Draw | 26 Amps |
| Duty Cycle | 100% |
| Temperature Range | -40 degC to 70 degC |
Pneumatic Data
| Pressure Control | 6.9 bar (100 psi) |
Other Data
| Mounting Position | Multi-axis |
| Weight | 10 kg (22lbs) |

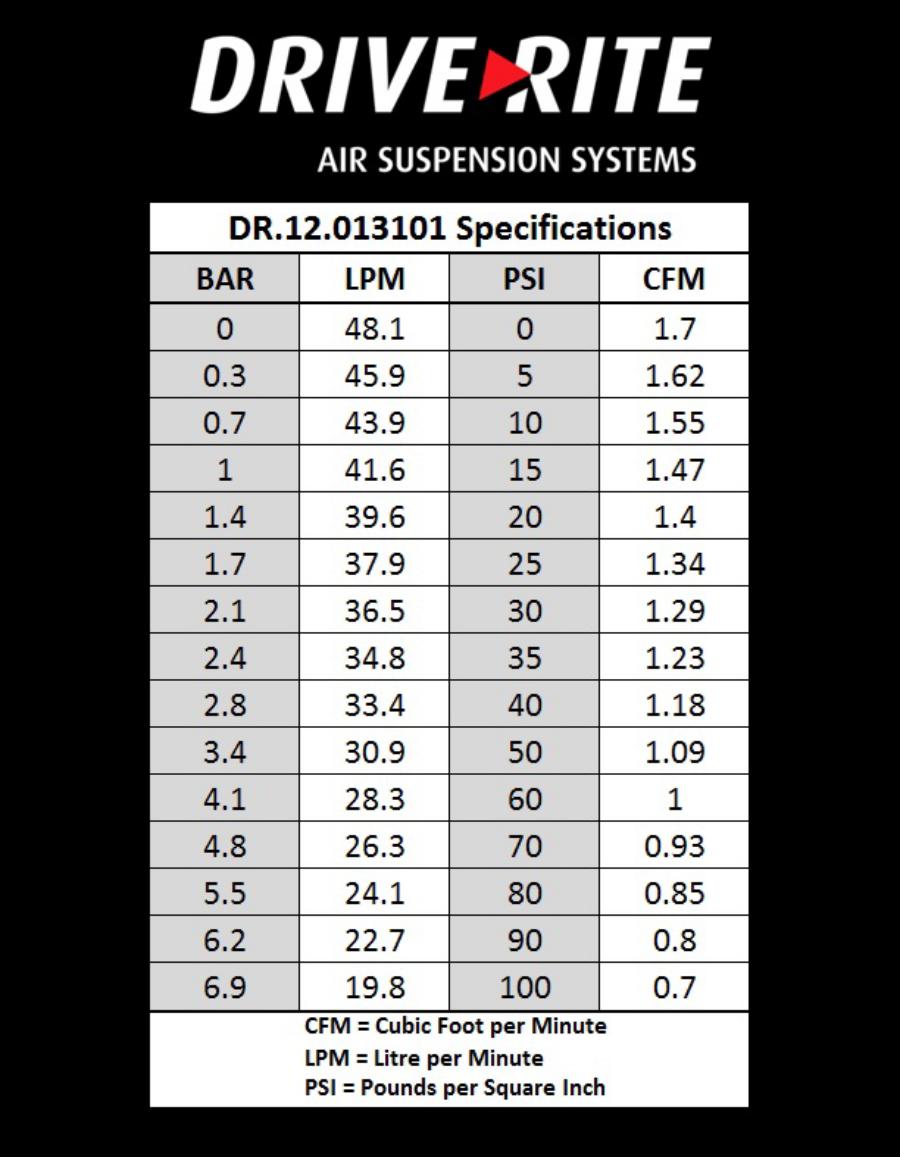

| Flow Data | See Spec Image |
| Tube Connection | 1/4" tube |
Click thumbnail to view detailed image.
