140/95 Style Air Spring - Plug Type Replacement for 'VB #0062030040 SK085/137'
Product Code: DR.07.019051
Specifications
| Part Number | DR.07.019051 |
| Air Spring Style | 140/95 Style |
| Cross Reference Number | W26-D60-9051 |
| Minimum Height | *Dependant on piston used |
| Maximum Stroke | *Dependant on piston used |
| Maximum Usable Height | *Dependant on piston used |
| Thread - Mounting Fittings | Metric |
| Thread - Air Feed | Imperial |
| Loading Capacity @ 3 Bar | *Dependant on Piston used |
| Loading Capacity @ 5 Bar | *Dependant on Piston used |
| Loading Capacity @ 7 Bar | *Dependant on Piston used |
| Natural Frequency Range @ 7 BAR | *Dependant on Piston used |
| Maximum Diameter @ 7 BAR | - |
| Operating Temperature | -37°C to 57°C |
Special Notes
The 140/95 Air Spring has a 'plug' on the bottom that is designed to work with different types of pistons.
The Load capacity of the Air Spring will vary depending on the piston paired with it.
DR.07.019051 air spring is a replacement spring for the 'VB #0062030040 SK085/137'

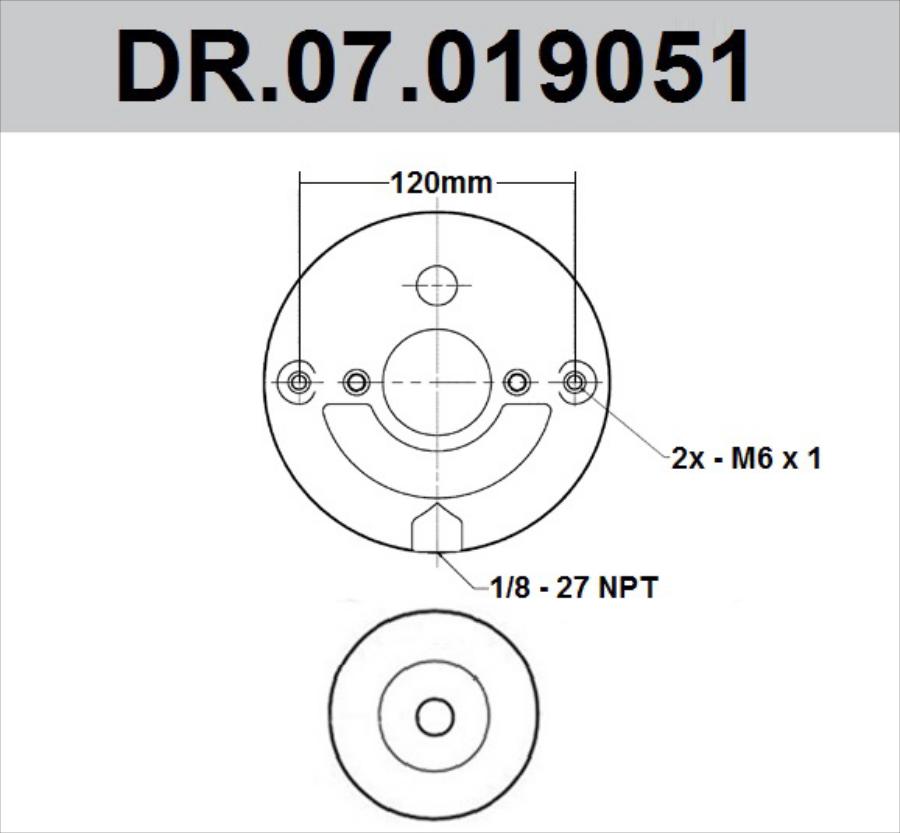

Click thumbnail to view detailed image.
