140/95 Style Air Springs
Product Code: DR.07.019047
Specifications
| Part Number | DR.07.019047 |
| Air Spring Style | 140/95 Style |
| Cross Reference Number | W21-760-9047 |
| Minimum Height | 203 mm |
| Maximum Stroke | 249 mm |
| Maximum Usable Height | 452 mm |
| Thread - Mounting Fittings | Imperial |
| Thread - Air Feed | Imperial |
| Loading Capacity @ 3 Bar | *Contact Drive-Rite for details |
| Loading Capacity @ 5 Bar | *Contact Drive-Rite for details |
| Loading Capacity @ 7 Bar | *Contact Drive-Rite for details |
| Natural Frequency Range @ 7 BAR | *Contact Drive-Rite for details |
| Maximum Diameter @ 7 BAR | 163.6 mm |
| Operating Temperature | -37°C to 57°C |
Special Notes

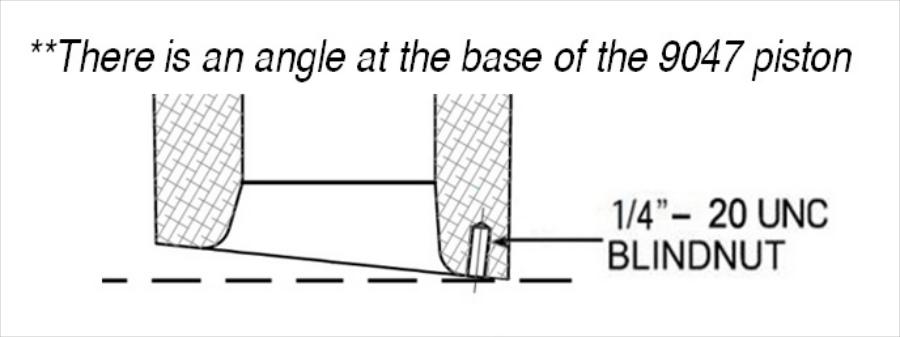

The built in piston used on the DR.07.019047 air spring is an unusual shaped developed for a specific application.
The bottom of the piston is machined to an angle. Contact Drive-Rite directly for further details.

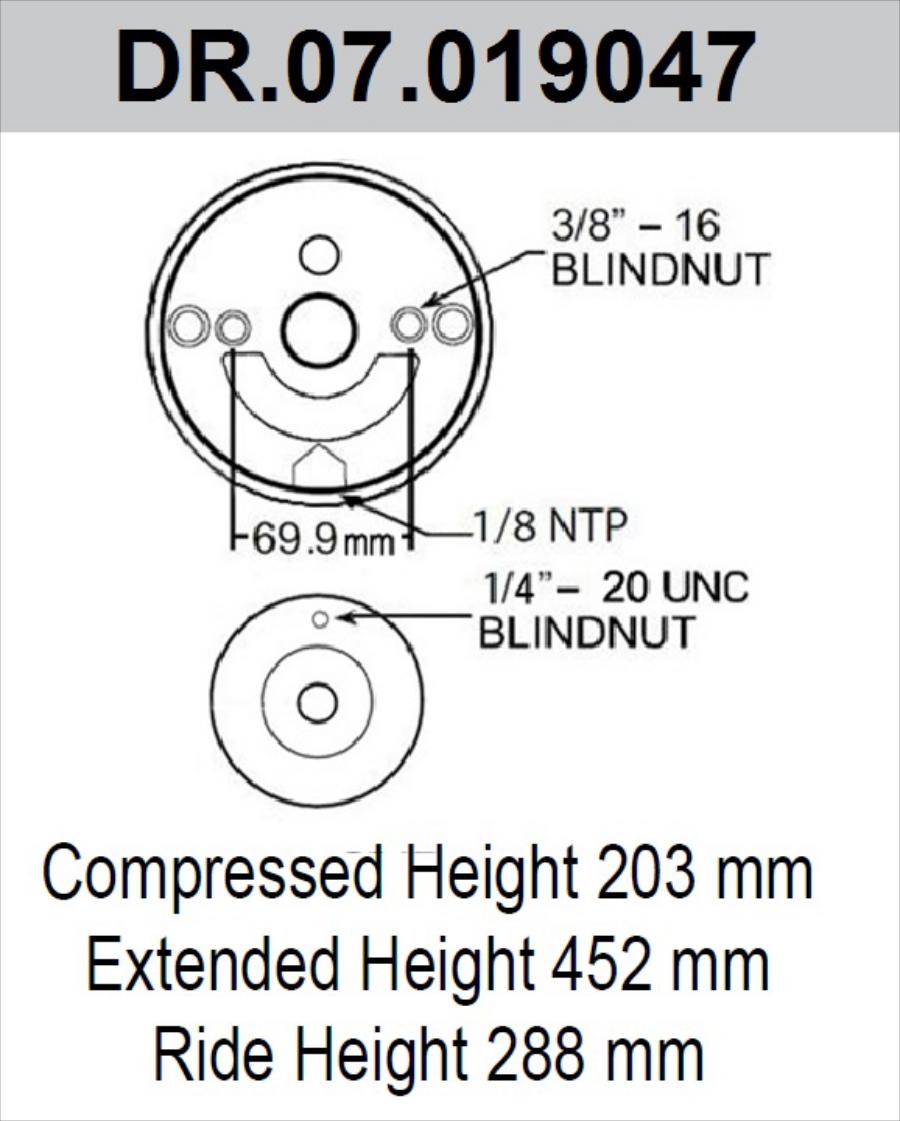

Click thumbnail to view detailed image.
